This compact state-of-the-art dynamic vibration isolation system achieves better isolation performance than most other comparable vibration damping systems.

(0) (0)

This medium-sized dynamic vibration isolation system is ideally suited for all applications which need more space on the top plate than is achievable with the TS-150.

Drilled top plates with holes in metric (M6 x 25mm) or non-metric grid allow mounting of various equipment on the isolated table top.

(0) (0)

The TS-300 is available in 2 versions. The TS-300LT is internally identical to the smaller systems TS-150 and TS-140. Because the top plate is larger, and therefore heavier, the maximum load is reduced to 120kg. The full version TS-300 is a robust system having double the number of motors and sensors, and able to support loads up to 300kg.

This is the largest of the TS-family and is ideally suited for all applications which need more space on the top plate than is achievable with the TS-140 / TS-150.

Drilled top plates with holes in metric (M6 x 25mm) or non-metric grid allow mounting of various equipment on the isolated table top.

(0) (0)

• Provides isolation in all six degrees of freedom.
• Continuously senses vibrations, and through an inertial feedback loop signals internal actuators to react to disturbing vibrations.
• Has a 5-20 msec response
• Has virtually no low frequency resonance so it is capable of isolating under the most extreme vibration environments.
• Uses no air.
• Requires no on-site calibration.
• Consumes minimal energy.
• Is perfect for metrology, delicate interferometers, STM, AFM, SEM, TEM, and other high-resolution instruments

Its compact turnkey design makes the AVI-350 perfect for retrofit or height-sensitive applications. The modular style allows it to adapt to specific sizes and loads, making it ideal for a wide range of applications.

(0) (0)

• Isolates in six possible rotational and translational modes of vibration.
• Active Isolation from 1 Hz to 200 Hz. Passive Isolation beyond 200 Hz
• No low frequency resonance means much better performance that a passive system.
• 500 times stiffer than passive system
• Inherent stiffness imparts excellent directional and positional stability
• Module length can be adjusted for specific applications
• Module style allows system to adapt to specific sizes and loads, making it idea for a wide range of applications

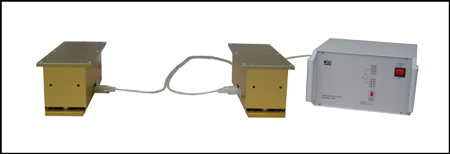

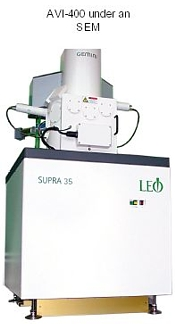

This low profile modular system consists of a minimum of two modules and a separate controller.š Each module supports 880 lbs.š Module length can be adjusted for specific applications.š Applications include precision instruments such as coordinate measuring machines, UHV-SPM, SEM, and TEM.

The inherent stiffness of the AVI-400 imparts excellent directional and positional stability. The lack of a low frequency resonance means much better performance than with passive systems.tems.

The inherent stiffness of the AVI-400 imparts excellent directional and positional stability.

The AVI-400 isolates all six degrees of freedom.

Isolation:	Active 1 Hz to 200 Hz
	Passive beyond 200 HZ
Transmissibility:	Above 10 Hz transmissibility <0.017 (-35dB)
StaticCompliance:	Vertical approx 3.5 µm / N
	Horizontal approx 7 µm/ N
System Noise:	less than 50nG/ from 0.1-200 HZ in any direction
Maximum Load:	7000 lbs ( 800 lbs per module, 8 modules max )
	3200 kg ( 400 kg/module, 8 max. )
Size:	28.3 x 17.5 x 4.5" ( 702 x 200 x 115 mm )
or	13.8 x 7.5 x 4.5" ( 600 x 200 x 115 mm )
Single Module Weight:	44 lbs ; 20 kg
Electrical
Safety class	1
Power Consumption	typically 10W, maximum 50 W (70 VA)
Input Voltage:	115-230V AC±10%, 50-60Hz
Monitor Signal:	A multiplexed signal for display on oscilloscope shows vibration levels with and without isolation. A signal of 1mV corresponds approximately to a velocity of 0.2Uin/sec at tabletop.
